Water Still DS 8012
water distillation unit
Professional fully automatic water distiller with built-in 24 litter storage tank. Automatically - controlled water distiller made of high quality stainless steel. Designed for producing high purity distillate without full-time personnel control.
Distillate produces has conductivity approximately 2.5 μS/cm. All parts for installation (hoses, etc.) are included.
DragLab Water Still offers unique advantages
• Durable, reliable and Low cost
• High purity distilled water - conductivity approx 2,5 μS/cm
• Built-in 24 litter storage tank
• Automatic water switching and power cut-off
• Electronic water level switch
• Automatic thermostatic cut-off safety system
• Hearing element made of high quality stainless steel
• All material contact water made of stainless steel AISI 304
• Easily accessed evaporator & storage tank for effortless cleaning and maintenance
• The unit is suitable for both bench and wall mounting.
• All parts and tools for installation included.
• CE Certificate
• 2-years warranty

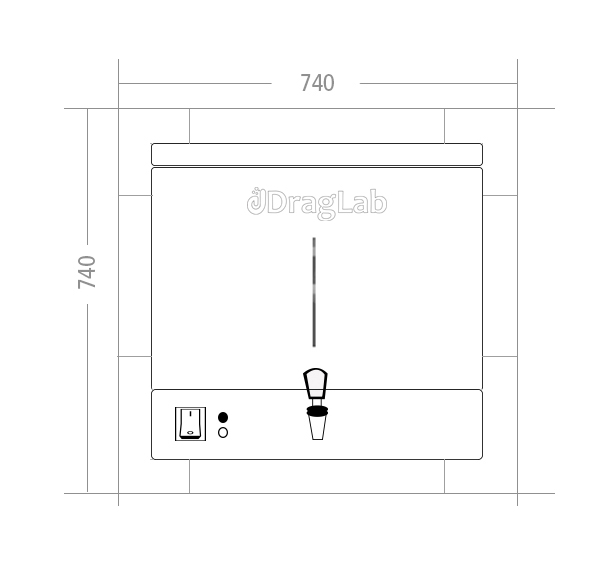

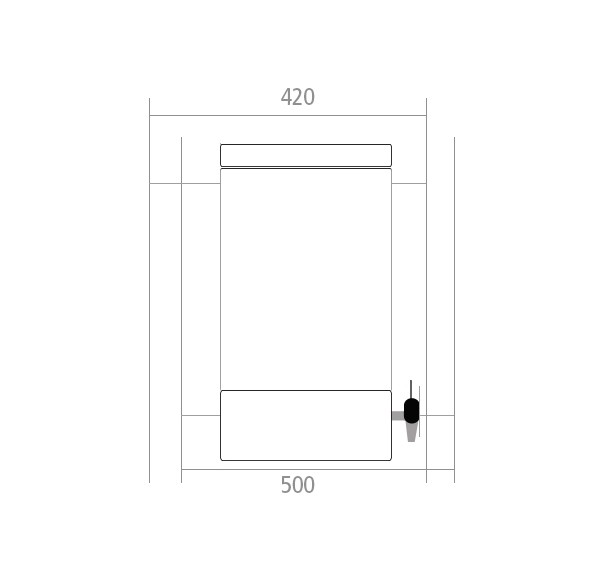

Dimensions
Technical specifications
| Capacity | |
|---|---|
| Capacity | 12 Litter / hour |
| Storage Tank | 24 Litter storage tank built-in |
| Consumption | 135 litter / hour |
| Conductivity | approximately 2,5 μS/cm |
| Control technology | |
|---|---|
| Fully Automatic | Automatic power cut-off, in case of low water, to protect the heating element Automatic start when the water at sufficient level in the evaporator tank Automatic thermostatic cut-off |
| Electronic level switch | Stop automatically in case of water level in storage tank is full Start automatically when distillate water is withdrawn from storage tank |
| Water supply | Solenoid valve built-in connection for evaporator and condenser Automatic solenoid valve switching on in case of low water level on evaporator tank Automatic solenoid valve switching off in case of high water level on evaporator tank |
| Standard equipment | |
|---|---|
| Internal material | Evaporator tank made of stainless steel material no. EN 1.4301 Condenser (cooler) made of stainless steel, material no. EN 1.4301 Heating element made of stainless steel, material no. EN 1.4876 Storage tank made of stainless steel material no. EN 1.4301 |
| External material | Housing material made of galvanized steel, electrostatically powder coated |
| Degassing system | Degassing system through a vent in the top of the unit |
| Accessing interior | Easily accessed evaporator & storage tanks for cleaning and maintenance |
| Installation | All parts and tools for installation included |
| distillate water withdrawal | The drain tap can be opened in either continuous or touch position |
| Main switch | Main switch button on the front of the unit |
| Led light | Two led lights on the front of the unit, green light for ready operation and red light to indicate that heating element is switching on |
| Mounting | Suitable for bench and wall mounting |
| Safety | |
|---|---|
| Water | Low water cut-off to protect heating element |
| Heating | Overheating cut-off |
| Led light | Led light alarm |
| Degassing | low-gas, bacteria and pyrogen free |
| Power connection | power cable with German shock-proof type (Schuko) plug |
| Connection | |
|---|---|
| Water inlet | Cooling water inlet on the right-hand side of the unit Water inlet diameter 3/4 inch (Ø 19.05 mm), |
| Water pressure | From 2 bar to max 10 bar |
| Water outlet | Cooling water outlet on the right-hand side of the unit Water outlet diameter 2/5 inch (inner Ø 10 mm) |
| Distillate water | Distillate withdrawal through drain tap on the front of the unit |
| Power | Main connection cable on the left-hand side of the unit |
| Electrical data | |
|---|---|
| Voltage | 400 V / 3ph 50...60 Hz |
| Watt | 9000 watt |
| Shipping information | |
|---|---|
| Customs tariff number | 8419 / 4090 |
| Packaging Dimension | 98 W X 62 D X 90 H, CM |
| Net weight | 40 Kg |
| Gross weight | 48 Kg |
Order information
| Description | Model | Article number |
|---|---|---|
| Water still 12L/h with 24L storage tank, 400V/50-60Hz | DS 8012 | 5012.000 * Other voltages available on request |
Options
| Description | Article number |
|---|---|
| Mains water inlet tap | 100 |
| Distilled water record | 200 |
| Waste water record | 300 |
| Drain tap | 400 |
| Heating element | 500 |
| Silicon hose | 600 |
