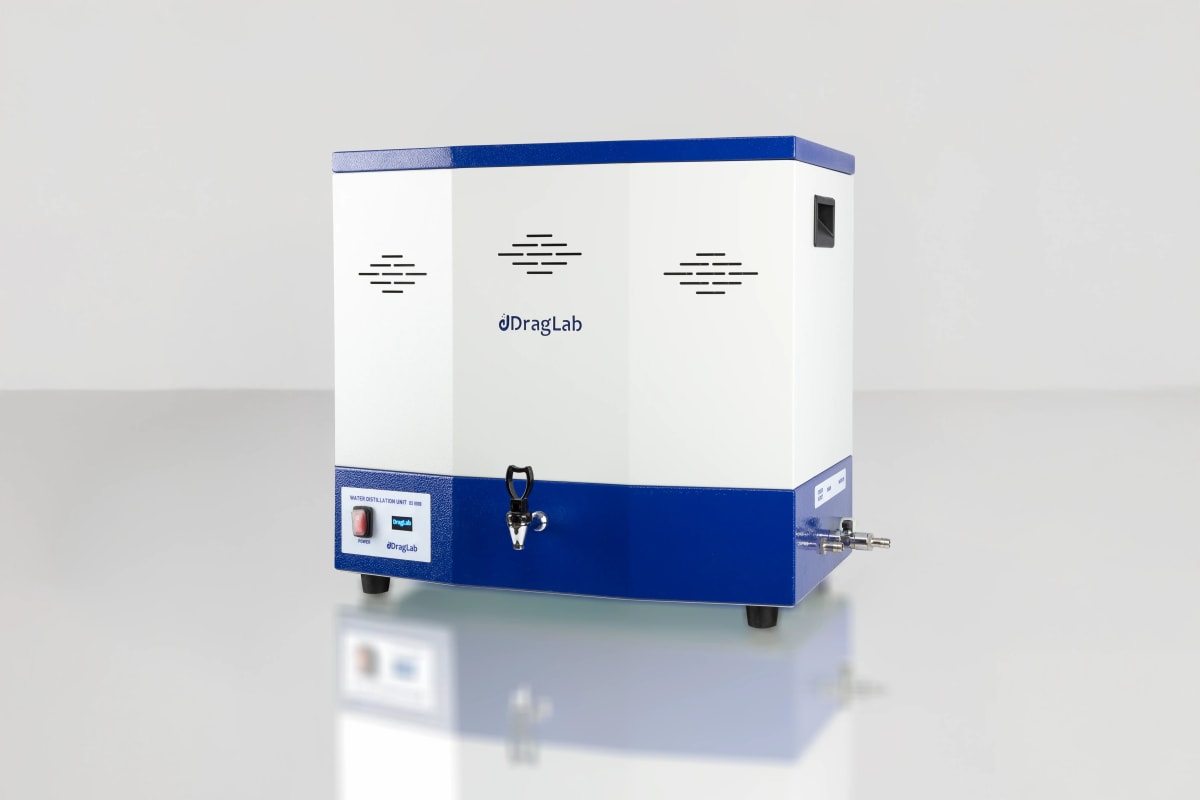

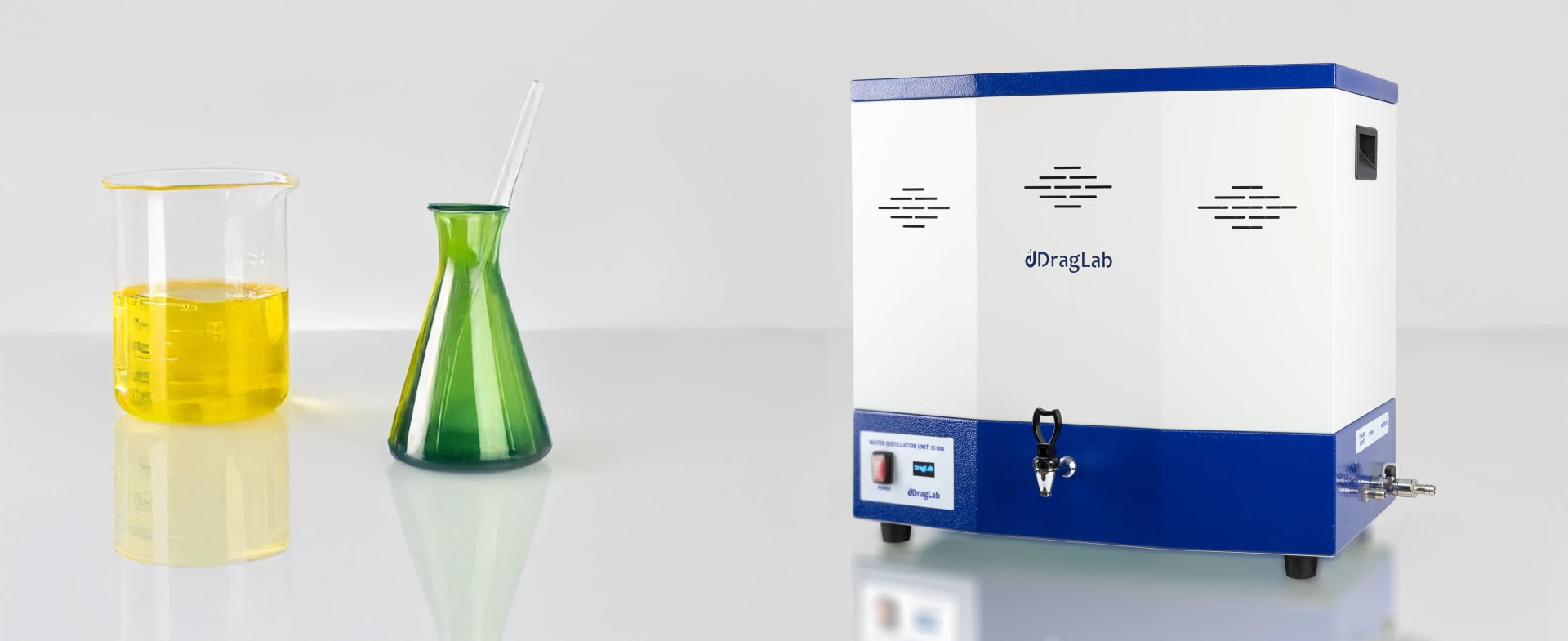

Water Still DS 8000
Compact and Reliable.
High-purity water distillation for small labs.
- Production Capacity
- 4 L/h
- Storage Tank
- Integrated 8 Litter storage tank
- Water Consumption
- 40 L/h
- Conductivity
- Approximately 2,3 µS/cm at 25 ºC
- ISO 9001 and ISO 14001
- CE compliant
- 2-year warranty
- 10 years of spare parts
Water Still DS 8000 at a glance
-
4L/h Capacity
8L storage tank
-
~2.3 µS/cm
High-Purity Distilled Water
-
Fully automatic operation
-
Durable material quality
All data for Water Still DS 8000
Catalog (PDF)Capacity
- Production Capacity
- 4 L/h
- Storage Tank
- Integrated 8 Litter storage tank
- Water Consumption
- 40 L/h
- Conductivity
- Approximately 2,3 µS/cm at 25 ºC
Control technology
- Fully Automatic – Low-Water Protection
- Automatic thermostatic power cut-off protects the heating element in case of low water level.
- Fully Automatic – Power Activation
- Automatic power activation when the water level reaches the safety line in the evaporator tank to protect the heating element.
- Fully Automatic – Storage Tank Refilling
- Automatic refilling of the storage tank after distillate withdrawal, electronically controlled.
- Water supply
- Built-in solenoid valve connection for the evaporator and condenser, with automatic switching on/off based on the water level in the evaporator tank.
Standard equipment
- Internal Material – Evaporator and Storage Tanks
- The evaporator and storage tanks are made of stainless steel (material no. EN 1.4301).
- Internal Material – Condenser
- The condenser is made of stainless steel (material no. EN 1.4876).
- Internal Material – Heating Element
- The heating element is made of stainless steel (material no. EN 1.4876).
- External material
- The housing is made of galvanized steel with an electrostatic powder coating.
- Degassing system
- The unit includes a top vent for effective degassing, ensuring pyrogen-free, low-gas, and bacteria-free water.
- Interior Access
- The evaporator and storage tanks are easily accessible for cleaning and maintenance, facilitating efficient cleaning procedures.
- Installation
- All necessary parts and accessories for installation are included.
- Distillate Withdrawal
- Distilled water can be withdrawn continuously or in push mode using the front tap.
- Main switch
- The main power switch is located on the front of the unit.
- Screen
- The device features a screen indicating the water level in the storage tank, heater operating status, water supply status, and error status, and providing user instructions.
- Mounting
- Suitable for both bench-top and wall mounting.
Safety
- Water Level Protection
- Low-water-level sensor with automatic power cut-off to protect the heating element.
- Heating Protection
- Overheating cut-off
- Screen
- The screen displays start-up tests for the heating element and provides visual alarms for faults and errors.
- Degassing
- Top vent for degassing, ensuring pyrogen-free, low-gas, and bacteria-free water.
- Power connection
- Power cable with a German Schuko-type plug.
Connection
- Water inlet
- The cooling water inlet is located on the right-hand side of the unit and has a diameter of 3/4 inch (Ø 19.05 mm).
- Water pressure range
- 2–10 bar
- Water outlet
- The cooling water outlet is located on the right-hand side of the unit, with a di- ameter of 2/5 inch (inner Ø 10.16 mm).
- Drainage tap
- The drainage tap is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10.16 mm).
- Distillate Withdrawal
- Distilled water can be withdrawn continuously or in push mode using the front tap.
- Power Connection
- The main power connection cable is located on the left-hand side of the unit.
Electrical data
- Voltage
- 230 V, 50/60 Hz
- Power
- 3000 W
Shipping information
- Customs tariff number
- 8419 4090
- Packaging Dimension
- 80 W × 45 D × 72 H cm
- Net weight
- 27 Kg
- Gross weight carton
- 32 Kg
Matching accessories
-

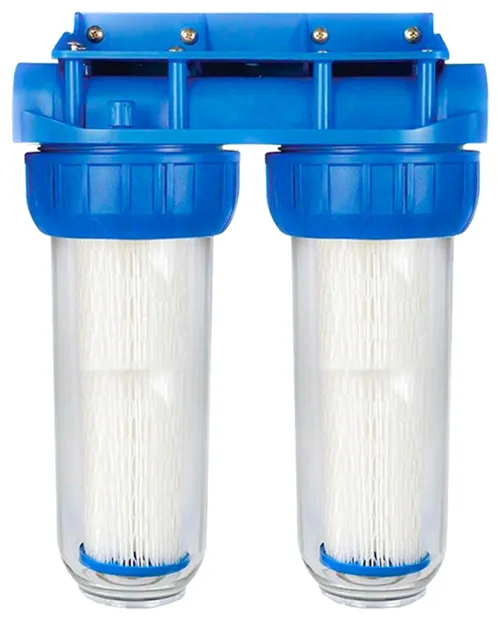

View: Pre-filterPre-filter
