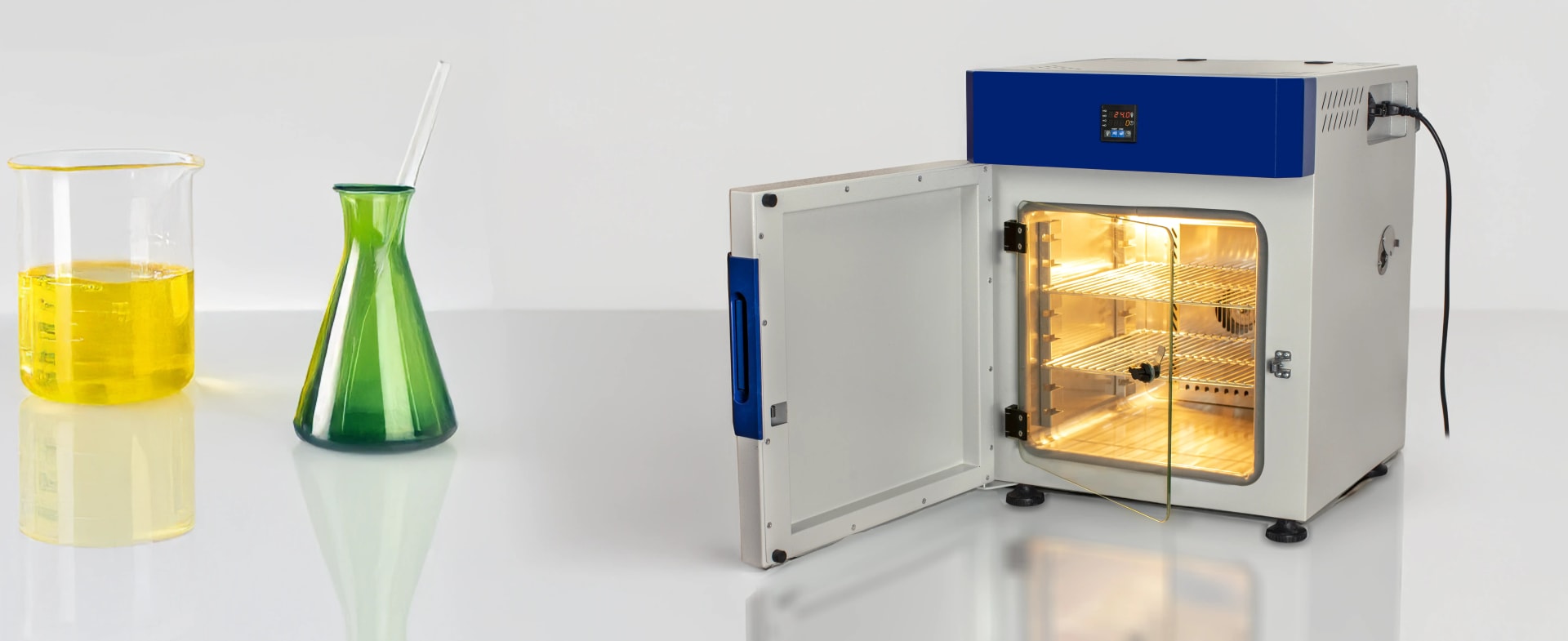

Drying oven DO 30 - Digital Display
Precision Laboratory Drying Oven
Reliable drying oven for scientific and industrial use
- Working temperature range
- min. +20°C ambient up to +250°C
- Temperature fluctuation
- 0.1 ºC
- Temperature accuracy
- ± 0.3 % (Over full scale)
- Temperature unit
- Easy to choose Celsius or Fahrenheit
- ISO 9001 and ISO 14001
- CE compliant
- 2-year warranty
- 10 years of spare parts
Drying oven DO 30 - Digital Display at a glance
-
Adaptive PID controller
-
Uniform Heating
-
Premium accuracy
-
Easy-to-Clean
All data for Drying oven DO 30 - Digital Display
Catalog (PDF)Temperaturec
- Working temperature range
- min. +20°C ambient up to +250°C
- Temperature fluctuation
- 0.1 ºC
- Temperature accuracy
- ± 0.3 % (Over full scale)
- Temperature unit
- Easy to choose Celsius or Fahrenheit
- Temperature sensor
- 1 Pt100 sensor DIN class A in 2-wire-circuit
Control technology
- Language setting
- English
- Control
- Adaptive multifunctional digital PID-microprocessor controller
- Display
- 4 digits, 7 segments digital display
- Timer
- Digital backward counter to target time setting
- Timer control
- Adjustable from 1 minute to 99:59 hour or continues
- Delay timer
- Programmable time delay function
- Function set point wait
- The timer does not start until the set temperature reached the set point
- Adjustable parameter
- Temperature and time, automatic fan adjustable
Standard equipment
- Door
- Fully insulated stainless steel door with door lock
- Calibration certificate
- Calibration certificate at +100°C (optional)
- Interior
- Easy-to-clean interior made of stainless steel AISI 304 on all sides
- Gasket
- Synthetic rubbers gasket
- Housing
- Electrostatic powder-coated galvanized steel
- Insulation
- Fully isolated chamber by Rockwool covered by an aluminum sheet to ensure high-temperature stability
- Emergency knob
- Manual knob in case of emergency
- External dimensions
- 470 (W) X 525 (D) X 600 (H) mm
- Shelves
- 2-shelves chrome plated
Safety
- Auto diagnostic system
- Audible alarm for fault analysis
- Alarm
- Audible, can be switched off, adjustable limit on the independent temperature safety device
- Standards
- integrated independent temperature safety device with visual alarm accordance DIN 12880
- Standards
- EN 61010-1 and EN 61010-2-010 in accordance with EU directive 2014/35/EU
- Standards
- EN 61326-1:213 and EN 61326-1 in accordance with EU directive 2014/30/EU
- Class
- Class I in accordance with the EU directive MDD 93/42/EEC
- Protection Class
- IP20 according to EN 60529
Interior
- Internal dimensions
- 350 (W) X 300 (D) X 340 (H) mm
- Chamber
- Easy to clean Stainless steel material no.: EN 1.4301 (AISI 304)
- Useful volume
- 30 litter
- Standard shelves
- 2-shelves chrome plated
- Max. number of shelves
- 5
- Permitted load
- 75 Kg
- Load per shelve
- 15 Kg
Ventilation
- Fan
- Forced air circulation by quiet air turbine automatically adjustable
Working conditions
- Installation
- The distance between the wall and the rear of the appliance must be at least 15 cm.
- Installation
- The sides distance must be not less than 5 cm.
- Installation
- The distance from the ceiling must not be less than 20 cm
- Temperature
- +5 °C to +55 °C
- Humidity
- Max. 80% rh
Electrical data
- Voltage
- 230 volts, 50/60Hz
- Watt
- 1500 watt
Shipping information
- Customs tariff number
- 8419 8998
- Dimensions approx. incl. carton
- 650 (W) X 570 (D) X 800 (H) mm
- Net weight
- 35Kg
- Gross weight carton
- 45Kg
Documents for Drying oven DO 30 - Digital Display
-
Download: Laboratory Drying oven DO 30 - Digital Display
Laboratory Drying oven DO 30 - Digital Display
Industries
Food and Beverage Industry
Sterilization and Cleaning.
Pharmaceutical industry
