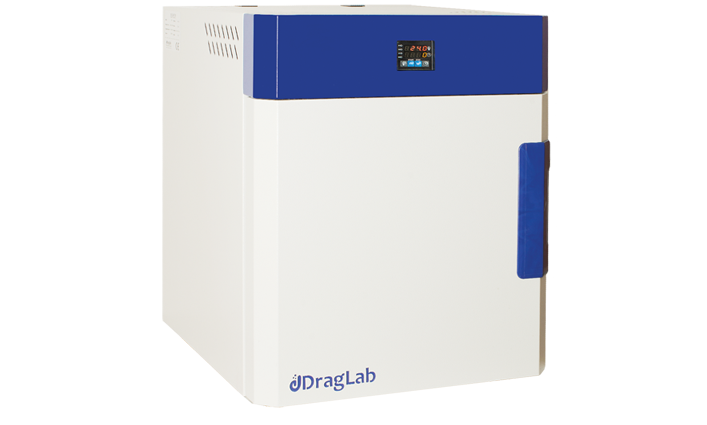

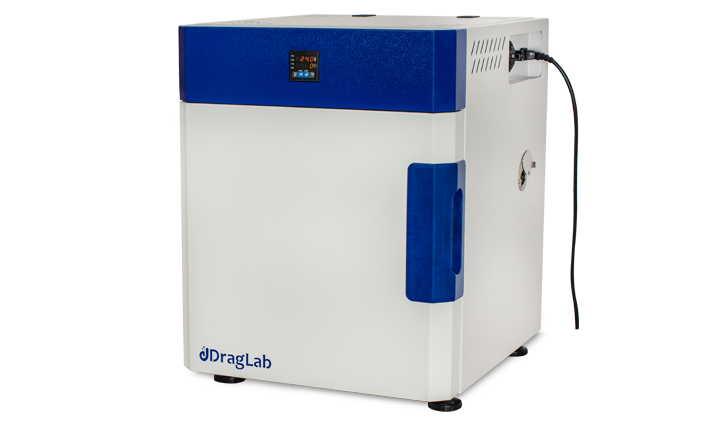

Drying oven DO 30 - Digital Display –

Precision Laboratory Drying Oven

Reliable drying oven for scientific and industrial use

Overview

High Control Accuracy

Advanced PID System

Uniform Heat Distribution

Forced Air Circulation

Advanced Control Display

Digital Display

Compliance with International Standards

DIN 12880

Industries

Food and Beverage Industry

Sterilization and Cleaning.

Pharmaceutical industry

Technical Specifications

Temperaturec

Working temperature range	min. +20°C ambient up to +250°C
Temperature fluctuation	0.1°C
Temperature accuracy	± 0.3 % (Over full scale)
Temperature unit	Easy to choose Celsius or Fahrenheit
Temperature sensor	1 Pt100 sensor DIN class A in 2-wire-circuit

Control technology

Language setting	English
Control	Adaptive multifunctional digital PID-microprocessor controller
Display	4 digits, 7 segments digital display
Timer	Digital backward counter to target time setting
Timer control	Adjustable from 1 minute to 99:59 hour or continues
Delay timer	Programmable time delay function
Function set point wait	The timer does not start until the set temperature reached the set point
Adjustable parameter	Temperature and time, automatic fan adjustable

Standard equipment

Door	Fully insulated stainless steel door with door lock
Calibration certificate	Calibration certificate at +100°C (optional)
Interior	Easy-to-clean interior made of stainless steel AISI 304 on all sides
Gasket	Synthetic rubbers gasket
Housing	Electrostatic powder-coated galvanized steel
Insulation	Fully isolated chamber by Rockwool covered by an aluminum sheet to ensure high-temperature stability
Emergency knob	Manual knob in case of emergency
External dimensions	470 (W) X 525 (D) X 600 (H) mm
Shelves	2-shelves chrome plated

Safety

Auto diagnostic system	Audible alarm for fault analysis
Alarm	Audible, can be switched off, adjustable limit on the independent temperature safety device
Standards	integrated independent temperature safety device with visual alarm accordance DIN 12880
Standards	EN 61010-1 and EN 61010-2-010 in accordance with EU directive 2014/35/EU
Standards	EN 61326-1:213 and EN 61326-1 in accordance with EU directive 2014/30/EU
Class	Class I in accordance with the EU directive MDD 93/42/EEC
Protection Class	IP20 according to EN 60529

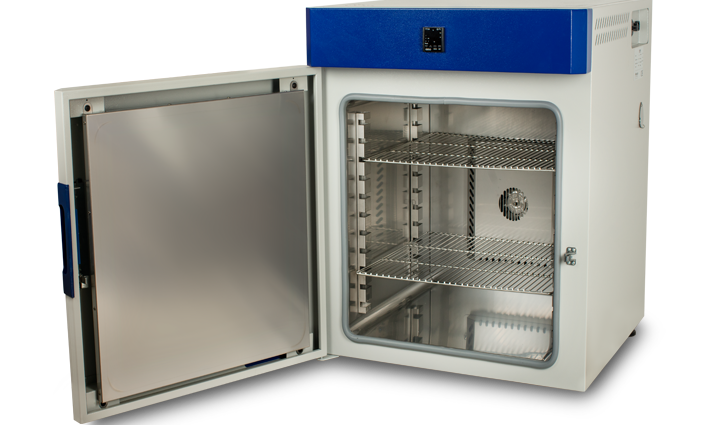

Interior

Internal dimensions	320 (W) X 310 (D) X 320 (H) mm
Chamber	Easy to clean Stainless steel material no.: EN 1.4301 (AISI 304)
Useful volume	30 litter
Standard shelves	2-shelves chrome plated
Max. number of shelves	5
Permitted load	75 Kg
Load per shelve	15 Kg

Ventilation

Fan	Forced air circulation by quiet air turbine automatically adjustable

Working conditions

Installation	The distance between the wall and the rear of the appliance must be at least 15 cm.
Installation	The sides distance must be not less than 5 cm.
Installation	The distance from the ceiling must not be less than 20 cm
Temperature	+5 °C to +55 °C
Humidity	Max. 80% rh

Electrical data

Voltage	230 volts, 50/60Hz
Watt	1500 watt

Shipping information

Customs tariff number	8419 8998
Dimensions approx. incl. carton	650 (W) X 570 (D) X 800 (H) mm
Net weight	35Kg
Gross weight carton	45Kg
