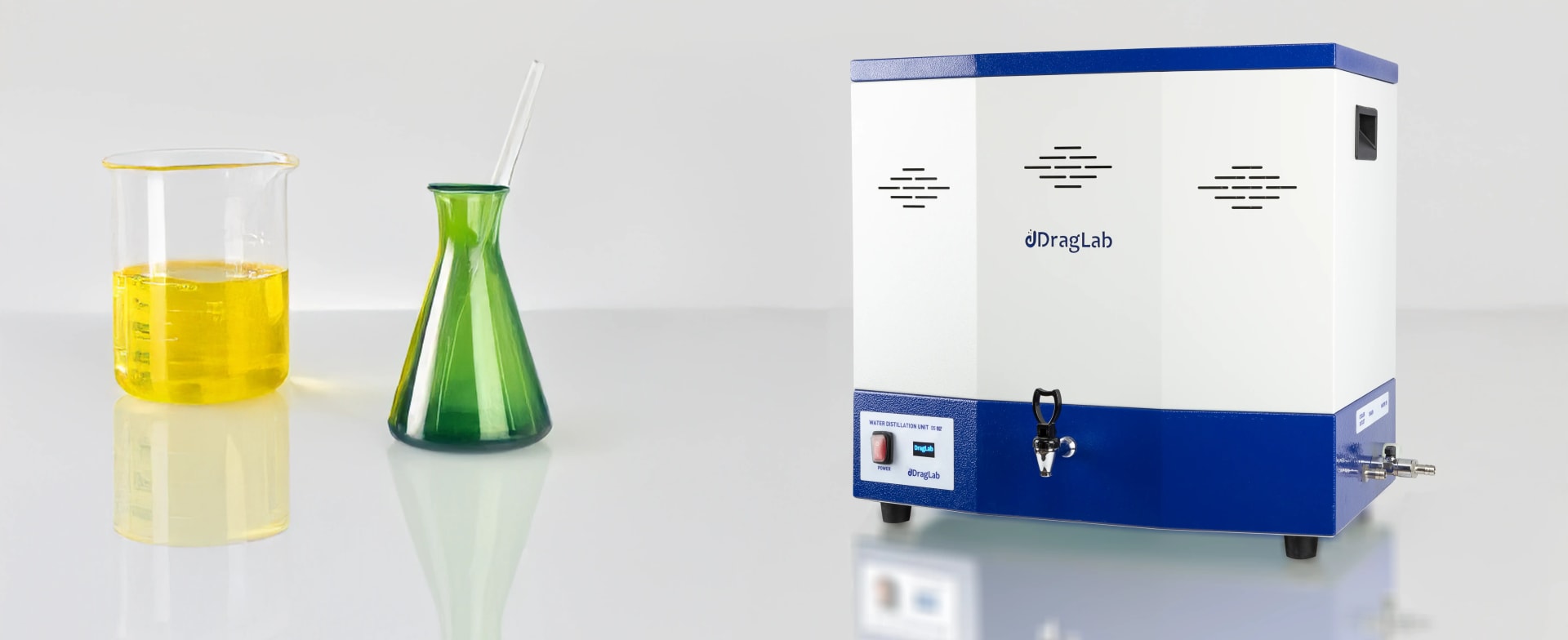

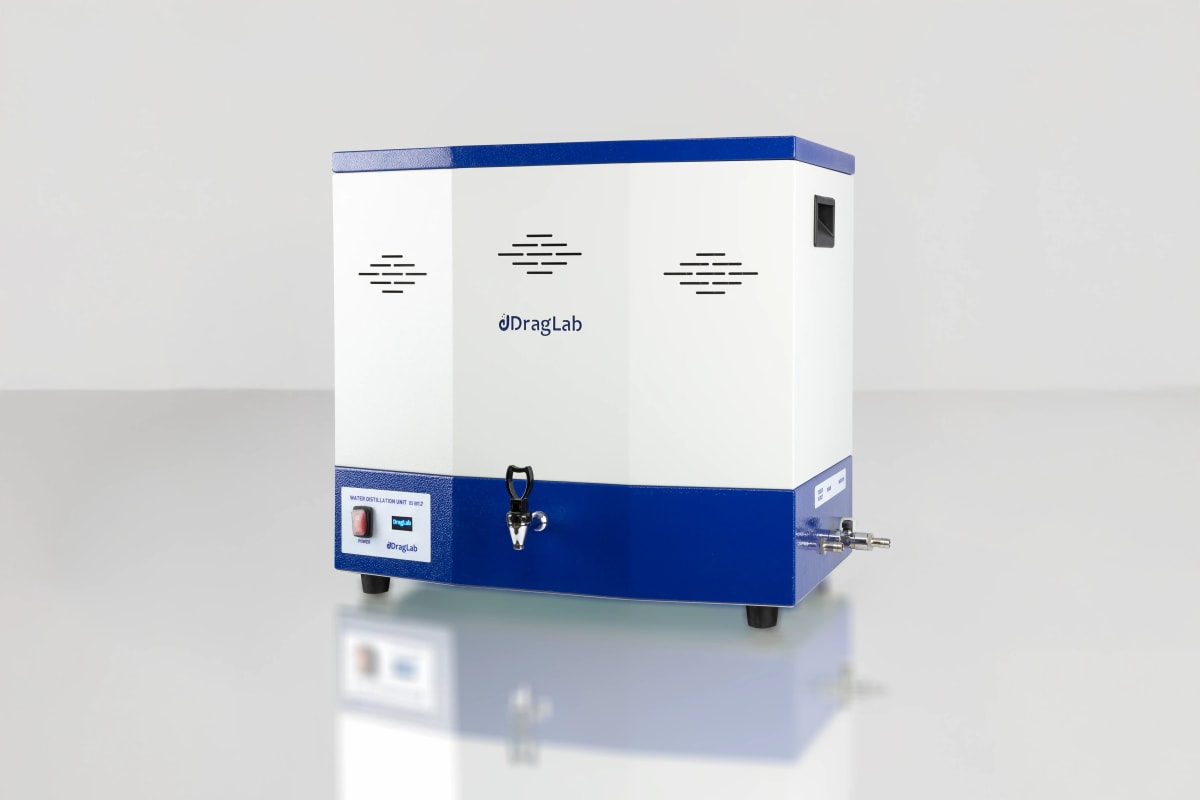

Water Still DS 8012 –

Name: Water Still DS 8012
Brand: DragLab

Compact and Reliable.

High-purity water distillation for small labs.

Water Still DS 8012 – Water Still Series | DragLab

Overview

12L/h Capacity

24L storage tank

~2.3 µS/cm

Ultra-pure water

Fully automatic operation

Durable material quality

Industries

Biotechnology and Life Sciences

Food and Beverage Industry

Pharmaceutical Industry

Chemical industry

Technical Specifications

Capacity

Production Capacity	12 L/h
Storage Tank	Integrated 24 L storage tank.
Water Consumption	135 L/h
Conductivity	Approximately 2,3 µS/cm at 25 ºC

Control technology

Fully Automatic – Low-Water Protection	Automatic thermostatic power cut-off protects the heating element in case of low water level.
Fully Automatic – Power Activation	Automatic power activation when the water level reaches the safety line in the evaporator tank to protect the heating element.
Fully Automatic – Storage Tank Refilling	Automatic refilling of the storage tank after distillate withdrawal, electronically controlled.
Water supply	Built-in solenoid valve connection for the evaporator and condenser, with automatic switching on/off based on the water level in the evaporator tank.

Standard equipment

Internal Material – Evaporator and Storage Tanks	The evaporator and storage tanks are made of stainless steel (material no. EN 1.4301).
Internal Material – Condenser	The condenser is made of stainless steel (material no. EN 1.4876).
Internal Material – Heating Element	The heating element is made of stainless steel (material no. EN 1.4876).
External material	The housing is made of galvanized steel with an electrostatic powder coating.
Degassing system	The unit includes a top vent for effective degassing, ensuring pyrogen-free, low-gas, and bacteria-free water.
Interior Access	The evaporator and storage tanks are easily accessible for cleaning and maintenance, facilitating efficient cleaning procedures.
Installation	All necessary parts and accessories for installation are included.
Distillate Withdrawal	Distilled water can be withdrawn continuously or in push mode using the front tap.
Main switch	The main power switch is located on the front of the unit.
Screen	The device features a screen indicating the water level in the storage tank, heater operating status, water supply status, and error status, and providing user instructions.
Mounting	Suitable for both benchtop and wall mounting.

Safety

Water Level Protection	Low-water-level sensor with automatic power cut-off to protect the heating element.
Heating Protection	Overheating cut-off
Screen	The screen displays start-up tests for the heating element and provides visual alarms for faults and errors.
Degassing	Top vent for degassing, ensuring pyrogen-free, low-gas, and bacteria-free water.
Power connection	Power cable with a German Schuko-type plug.

Connection

Water inlet	The cooling water inlet is located on the right-hand side of the unit and has a diameter of 3/4 inch (Ø 19.05 mm).
Water pressure range	2–10 bar
Water outlet	The cooling water outlet is located on the right-hand side of the unit, with a di- ameter of 2/5 inch (inner Ø 10.16 mm).
Drainage tap	The drainage tap is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10.16 mm).
Distillate Withdrawal	Distilled water can be withdrawn continuously or in push mode using the front tap.
Power Connection	The main power connection cable is located on the left-hand side of the unit.

Electrical data

Voltage	380 V, 50/60 Hz
Power	9000 W

Shipping information

Customs tariff number	8419 4090
Packaging Dimension	101 W × 57 D × 83 H cm
Net weight	50 Kg
Gross weight carton	56 Kg

Accessories

Name

Article No.

Pre-filter

550
