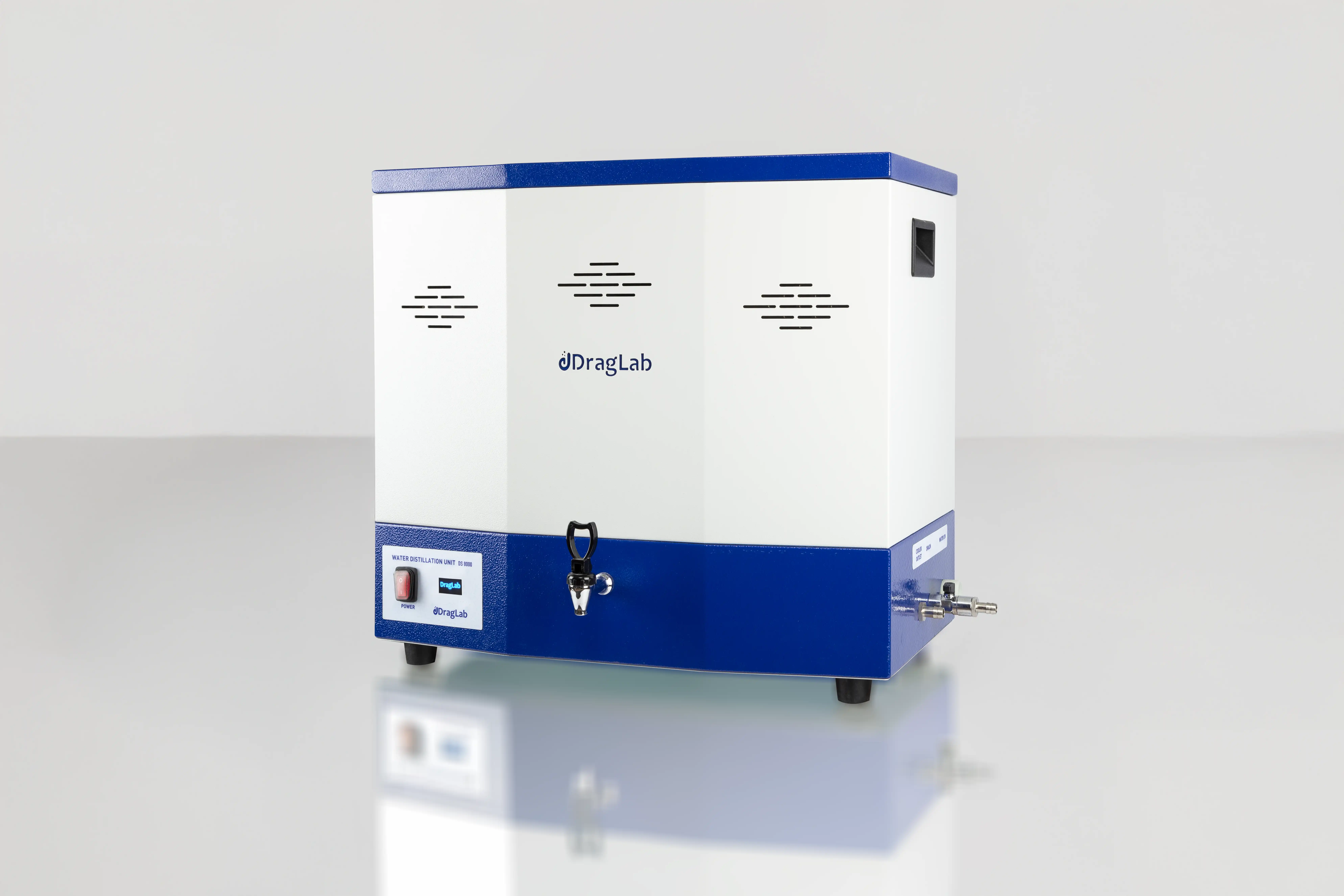

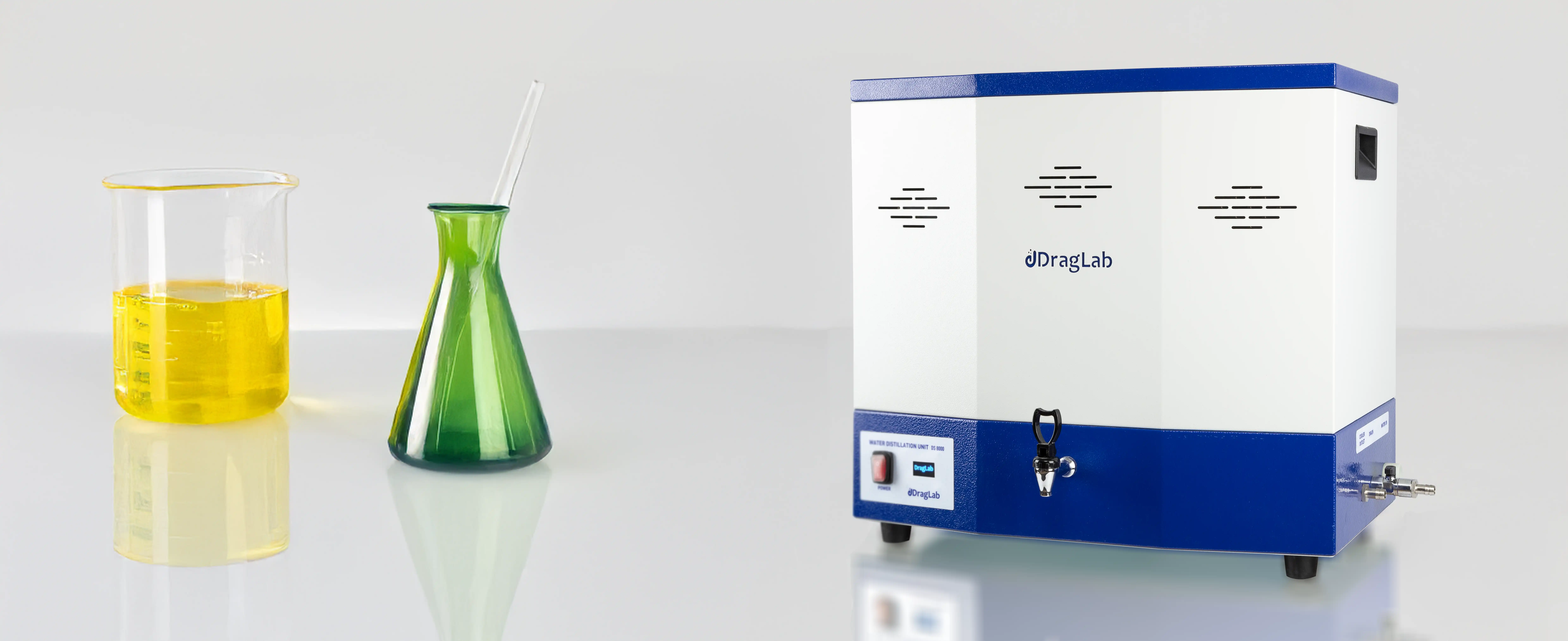

Water Still DS 8000 –

Compact and Reliable.

High-purity water distillation for small labs.

Overview

4L/h Capacity

8L storage tank

Ultra-pure water (~2.5 µS/cm)

Free From Bacteria and Pyrogens

Fully automatic operation

Smart Safety Systems

High-quality

Stainless Steel Internal Construction

Industries

Food and Beverage Industry

Sterilization and Cleaning.

Pharmaceutical industry

Technical Specifications

Capacity

Production Capacity	4 litter / hour
Storage Tank	Integrated 8 Litter storage tank
Consumption	40 litter / hour
Conductivity	Approximately 2,5 µS/cm at 25 ºC

Control technology

Fully Automatic	Automatic thermostatic power cut-off to protect the heating element in case of low water
Fully Automatic	Automatic power activation when the water level reaches the safety line in the evaporator tank to protect the heating element.
Fully Automatic	Automatic refilling of the storage tank after distillate withdrawal, electronically controlled.
Water supply	Built-in solenoid valve connection for the evaporator and cooler, with automatic switching on/off based on the water level in the evaporator tank.

Standard equipment

Internal material	The tanks (Evaporating tank & Storage tank) are made of stainless steel (material no. EN 1.4301)
Internal material	The condenser (cooler) is made of stainless steel (material no. EN 1.4876).
Internal material	The heating element is made of stainless steel (material no. EN 1.4876).
External material	The housing is made from galvanized steel and coated with electrostatic powder.
Degassing system	The unit includes a top vent for effective degassing, ensuring pyrogen-free, low -gas, and bacteria-free water.
Accessing interior	The evaporator and storage tanks are easily accessible for cleaning and maintenance, facilitating efficient cleaning procedures.
Installation	All necessary parts and accessories for installation are included.
Distillate water withdrawal	Distillate water can be withdrawn by continuously or push mode from front tap.
Main switch	The main power switch button located on the front of the unit
Screen	The device features a screen indicating water level in the storage tank, heater operation status, water supply, error status check, and user instructions.
Mounting	Suitable for both benchtop and wall mounting.

Safety

Water	Low water level sensor with automatic power cut-off to protect the heating element.
Heating	Overheating cut-off
Screen	The screen displays startup tests for the heating element and provides visual alarms for faults and errors.
Degassing	pyrogen-free, low-gas, and bacteria-free water.
Power connection	Power cable with German shock-proof type (Schuko)) plug

Connection

Water inlet	The cooling water inlet is located on the right-hand side of the unit, with a diameter of 3/4 inch (Ø 19.05 mm).
Water pressure range	From 2 bars to 10 bars
Water outlet	The cooling water outlet is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10 mm).
Drainage tap	The drainage tap is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10 mm).
Distillate water	Distillate water can be withdrawn by continuously or push mode from front tap.
Power	The main connection cable on the left-hand side of the unit

Electrical data

Voltage	230 volts, 50/60Hz
Watt	3000 watts

Shipping information

Customs tariff number	8419 4090
Packaging Dimension	80 W X 45 D X 72 H (CM)
Net weight	27 Kg
Gross weight carton	32 Kg
