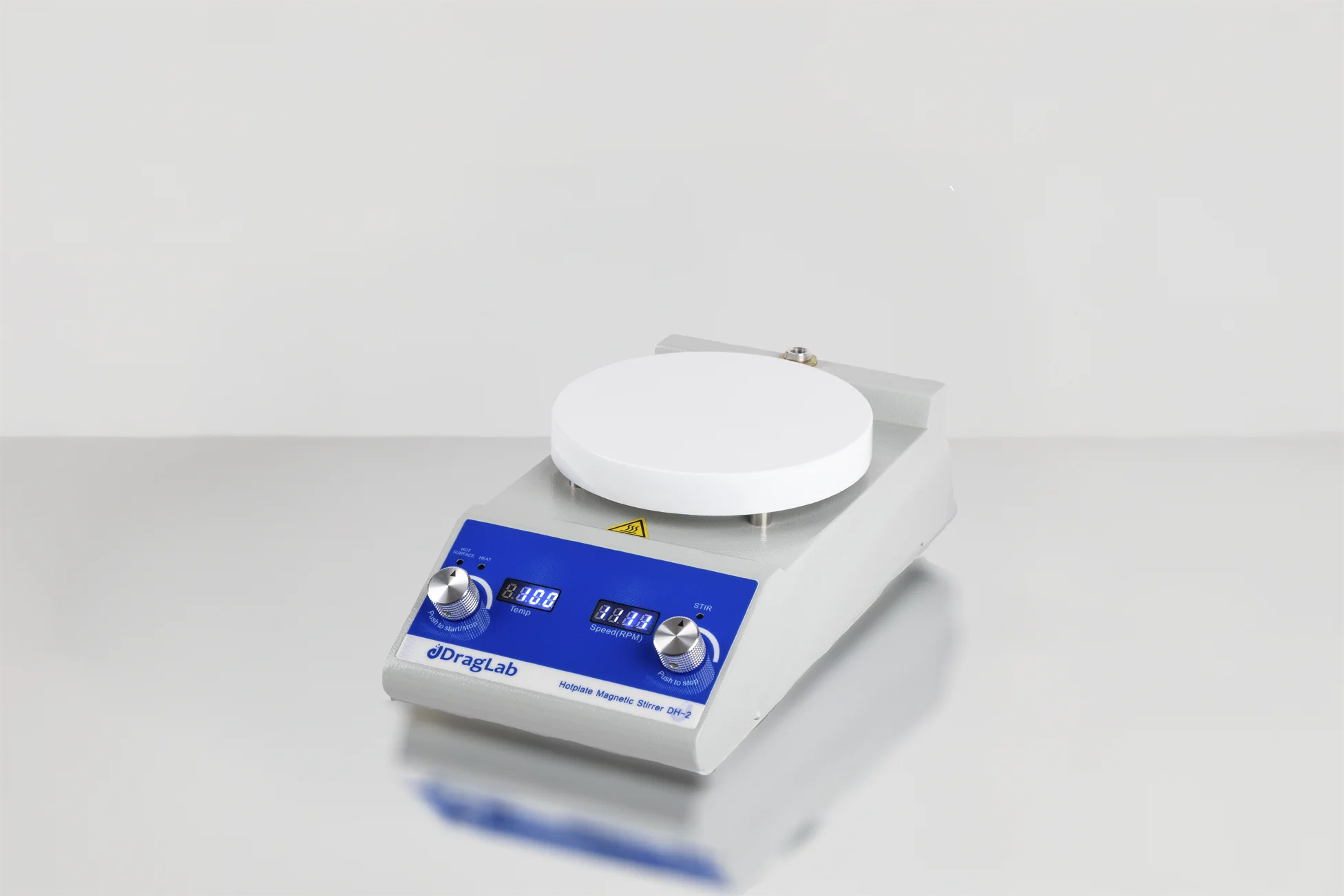

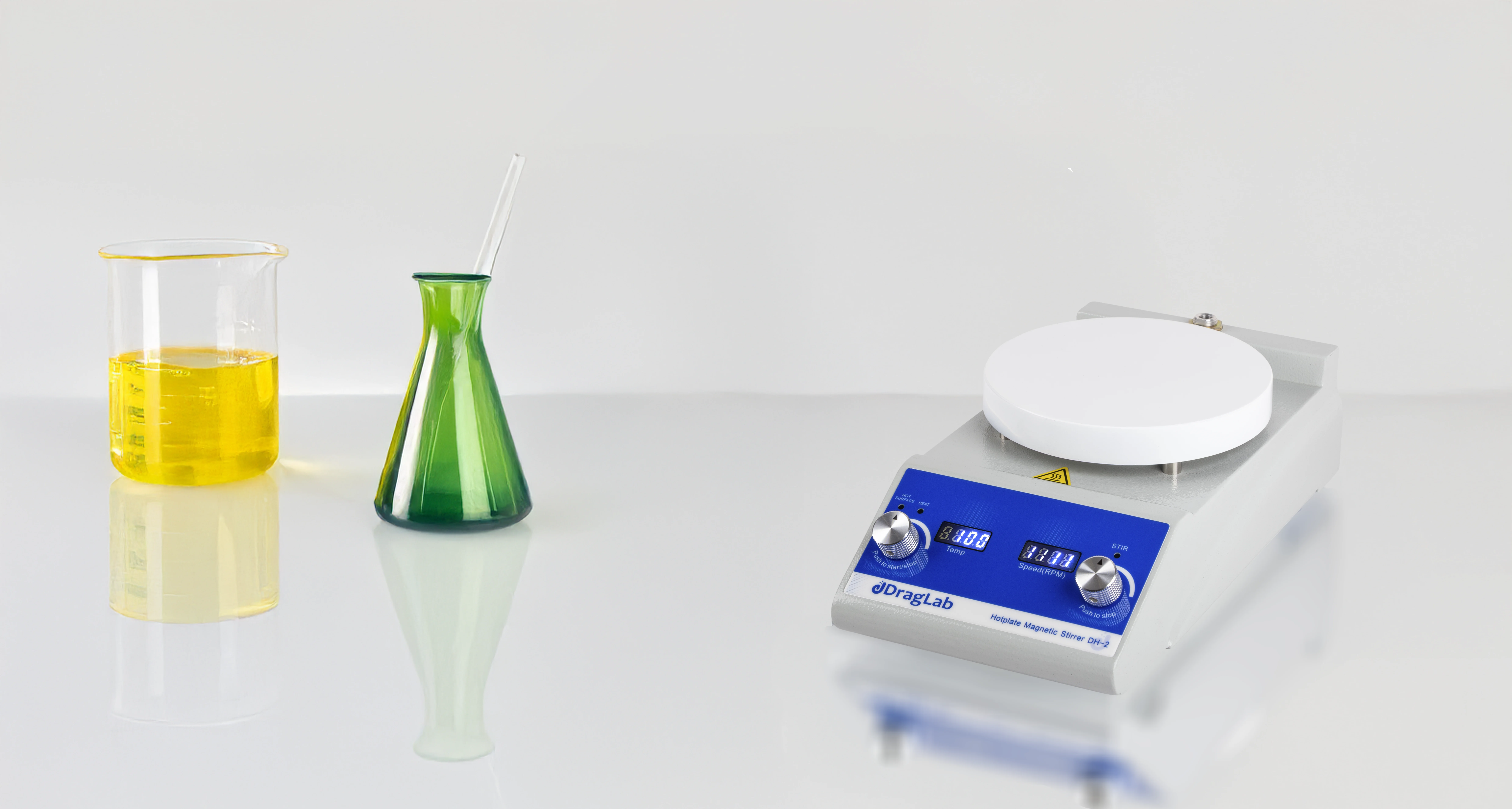

Hot Plate Magnetic Stirrer - Compact DH 2 –

Precision Heating & Stirring

Precision heating and smooth magnetic stirring for professional laboratory workflows

Hot Plate Magnetic Stirrer - Compact DH 2 – Hotplate Magnetic Stirrer Series | DragLab

Overview

Digital Display

LED Display

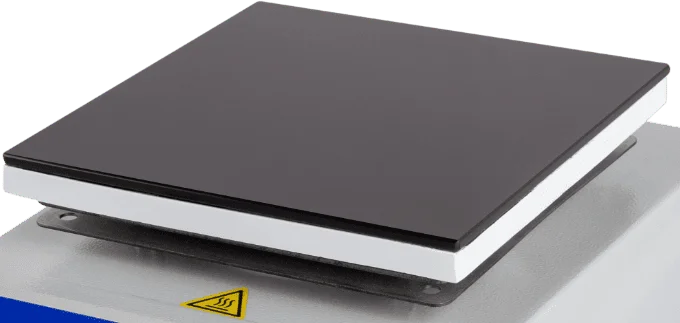

Plate material

Ceramic plate

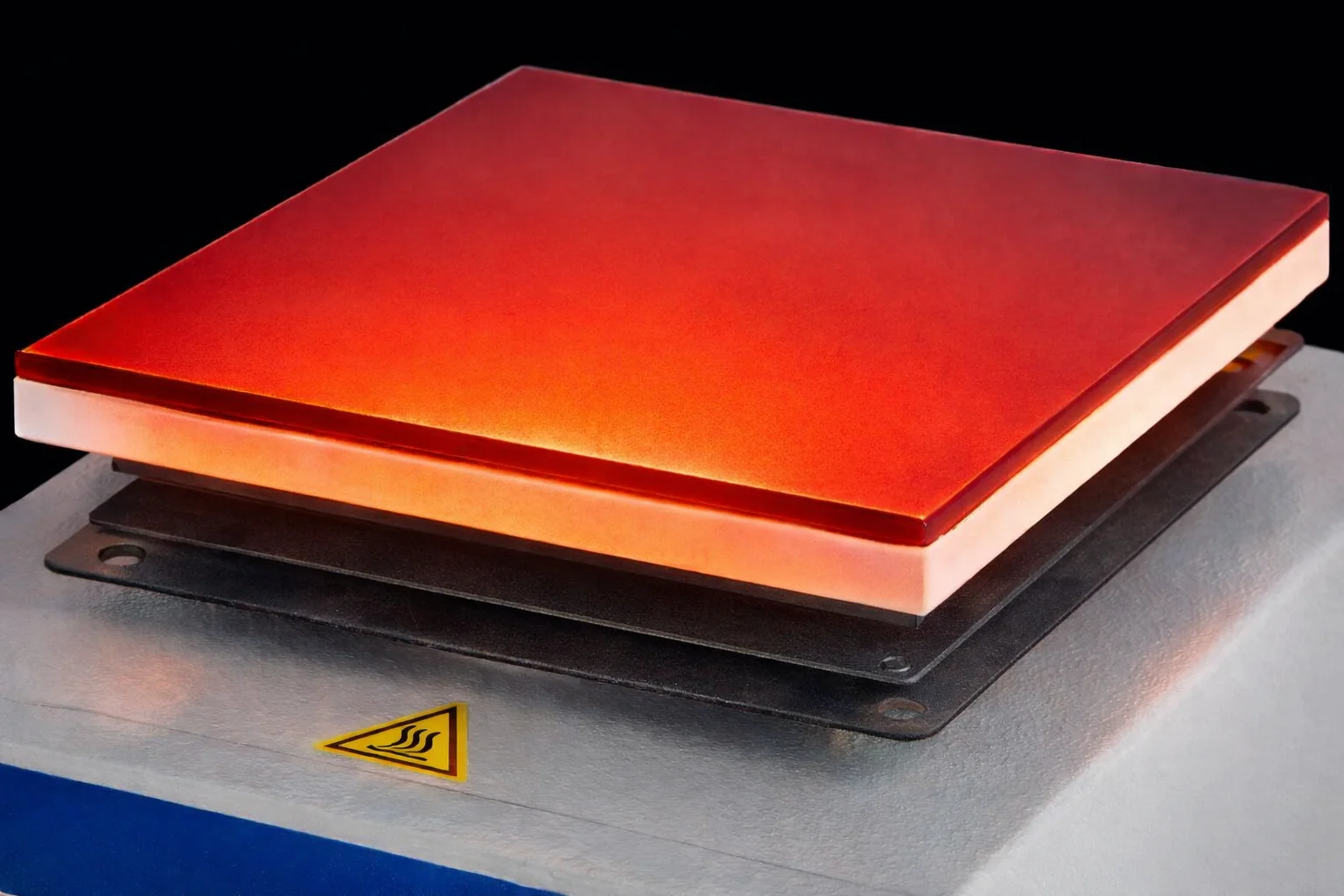

Fast and stable heating

Homogeneous Heating

Timer

Timers from 1MIN to 100 H

Industries

Biotechnology and Life Sciences

Pharmaceutical Industry

Chemical industry

Technical Specifications

Control technology

Control System	Digital control for both heating and stirring
Display	LED digital display showing active Heating and Stirring status
Control panel	Positive-feedback knobs with push to start/stop technology
Indicators	LED Working (heat) indicator and (Hot Surface) indicator
Operation Modes	Adjustable Plate Temperature Control or Solution Temperature Control via PT1000 sensor
Temperature range for plate	35-400°C
Temperature range for solution	35.0-200.0°C
Smooth magnetic stirring	Adjustable from 150–1500 rpm
Heating resolution of plate	1.0 °C
Heating resolution of solution	0.1 °C when using the external PT1000 probe temperature stability: 1.0 °C
heat control accuracy	±0.5 °C with PT1000
Calibration	supported on external thermometer.

Standard equipment

Plate diameter	Ø150 mm
Plate material	ceramic-coated aluminum plate
Number of stirring positions	1
Surface construction	Hard ceramic surface is scratch-resistant and easy to wipe clean
Outer casing	Rigid, corrosion-resistant housing, Powder-coated with stoved enamel paint
Stirring bars	compatible 25–60 mm stir bars
Dimensions	155X290X100
Net weight	3KG
Stirring quantity	10L max. per stirring position (Water)
External temperature sensor	PT 1000

Safety and Compliance

LED Indicators	Integrated LED indicators for user safety
HOT Warning	HOT surface indicator remains illuminated while the plate is above a safe touch temperature to promote safe handling.
Overheat and Medium detection	Overheat warning in plate and medium detection are displayed as error codes for user safety.
Smooth acceleration/deceleration	helps prevent splashing and stir-bar decoupling when starting, stopping, or changing speeds
Compliance	IP21 splash protection rating / DIN EN 60529
Compliance	CE Mark, IP21, IEC 61010-1

Technical Data

Voltage	AC 190–240 V, 50/60 Hz
Power Consumption	500 watt
Protection class	IP 21 according to DIN EN 60529
Installation Environment	Indoor use on a level, stable bench away from direct sunlight, drafts, and external heat sources. Use a fume hood when heating volatile or hazardous solvents.
Operating Temp.	10 °C – 40 °C
Humidity (operation)	30% – 80% RH (non-condensing)
Air Pressure	700 – 1060 hPa
Storage Temp.	10 °C – 40 °C (Ensure unobstructed air inlets/outlets on the chassis )
Net weight	3 KG
Overall Dimensions	155X290X100 mm

Accessories

Standard Accessories	Power cable
Standard Accessories	User Manual
Standard Accessories	Stirring Bars (3 sizes)

Shipping information

Customs tariff number	84198990
Dimensions approx. incl. carton	200 (W) X 370(D) X 210 (H) mm
Gross weight carton	5.00 KG
