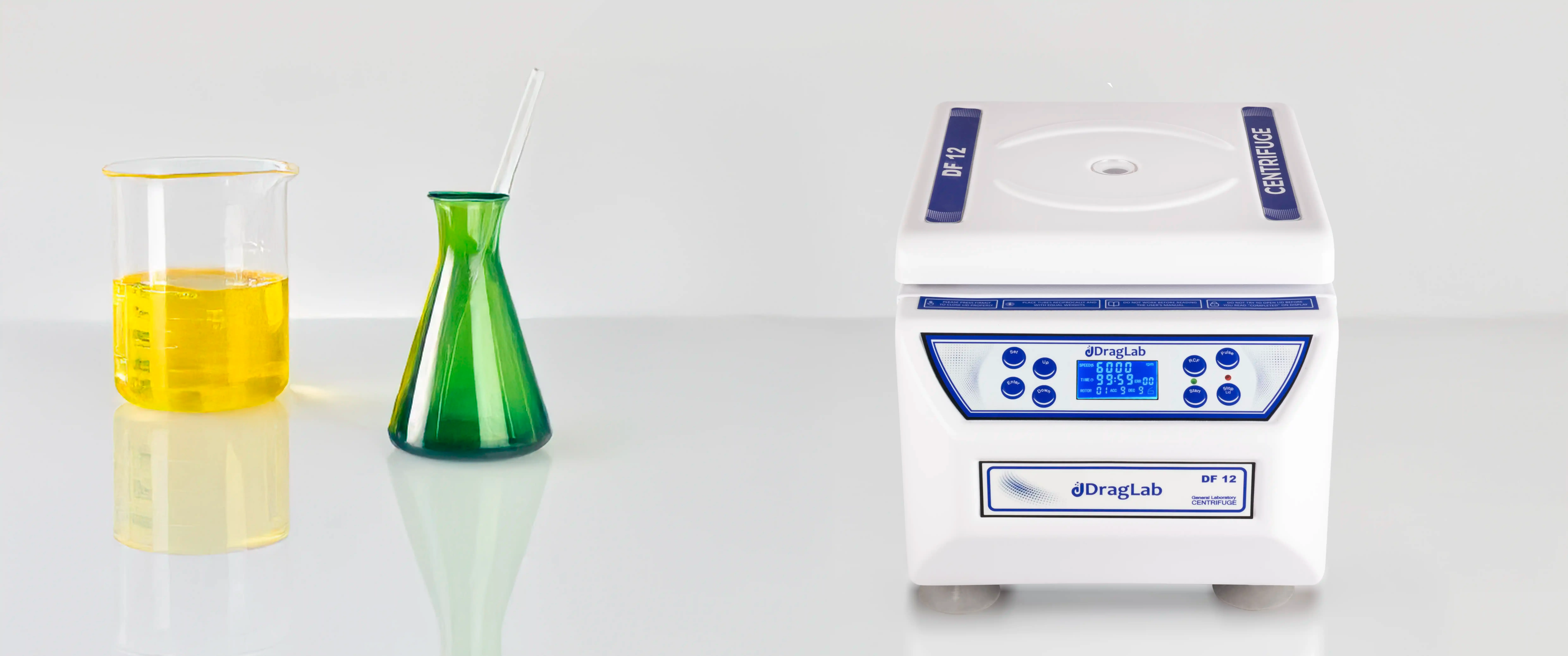

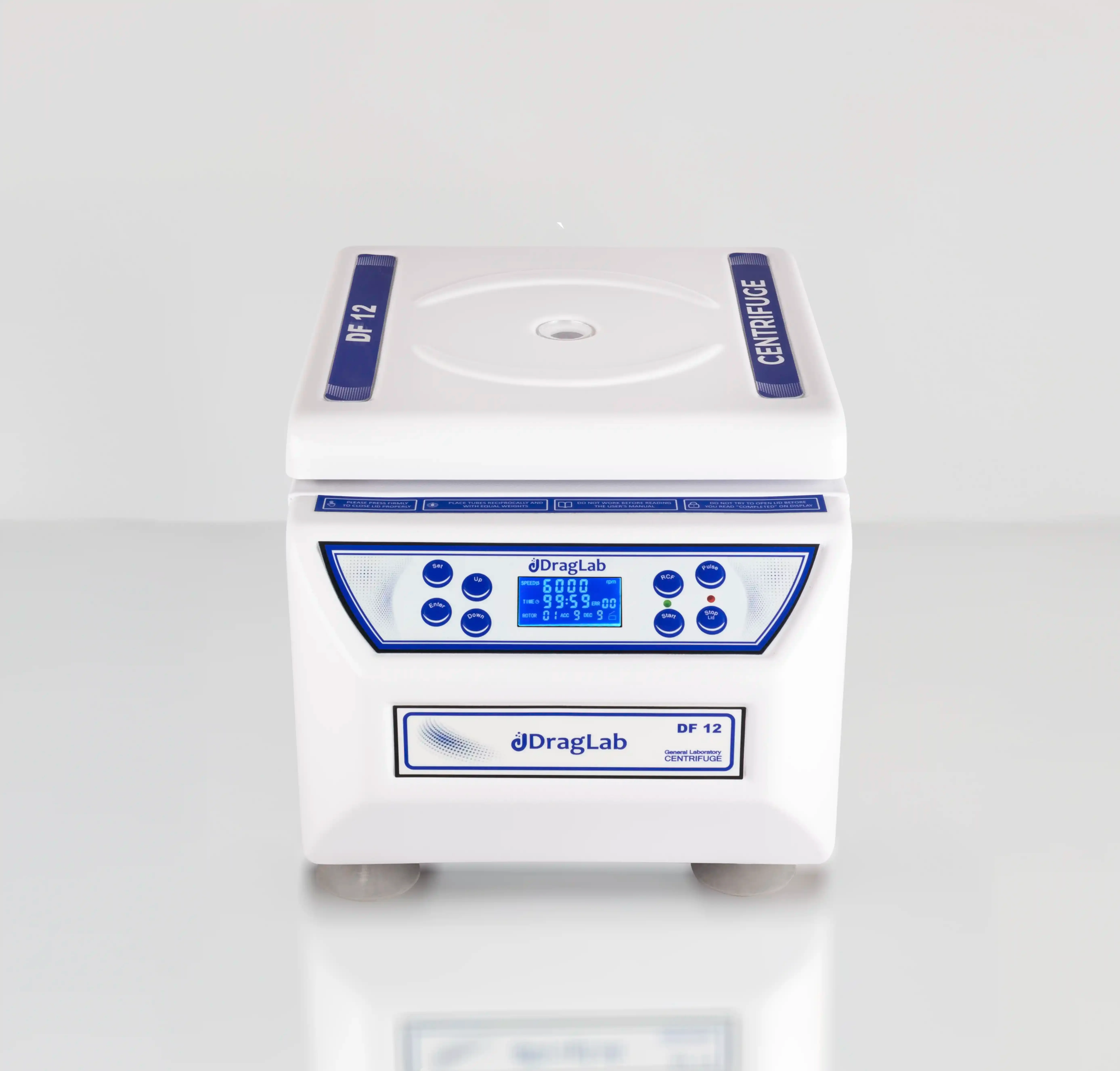

CENTRIFUGE DF 12 – Digital Display –

Speed, Precision, Reliability

Discover high-performance centrifugation designed to meet the demands of modern laboratories.

CENTRIFUGE DF 12 – Digital Display – CENTRIFUGE | DragLab

Overview

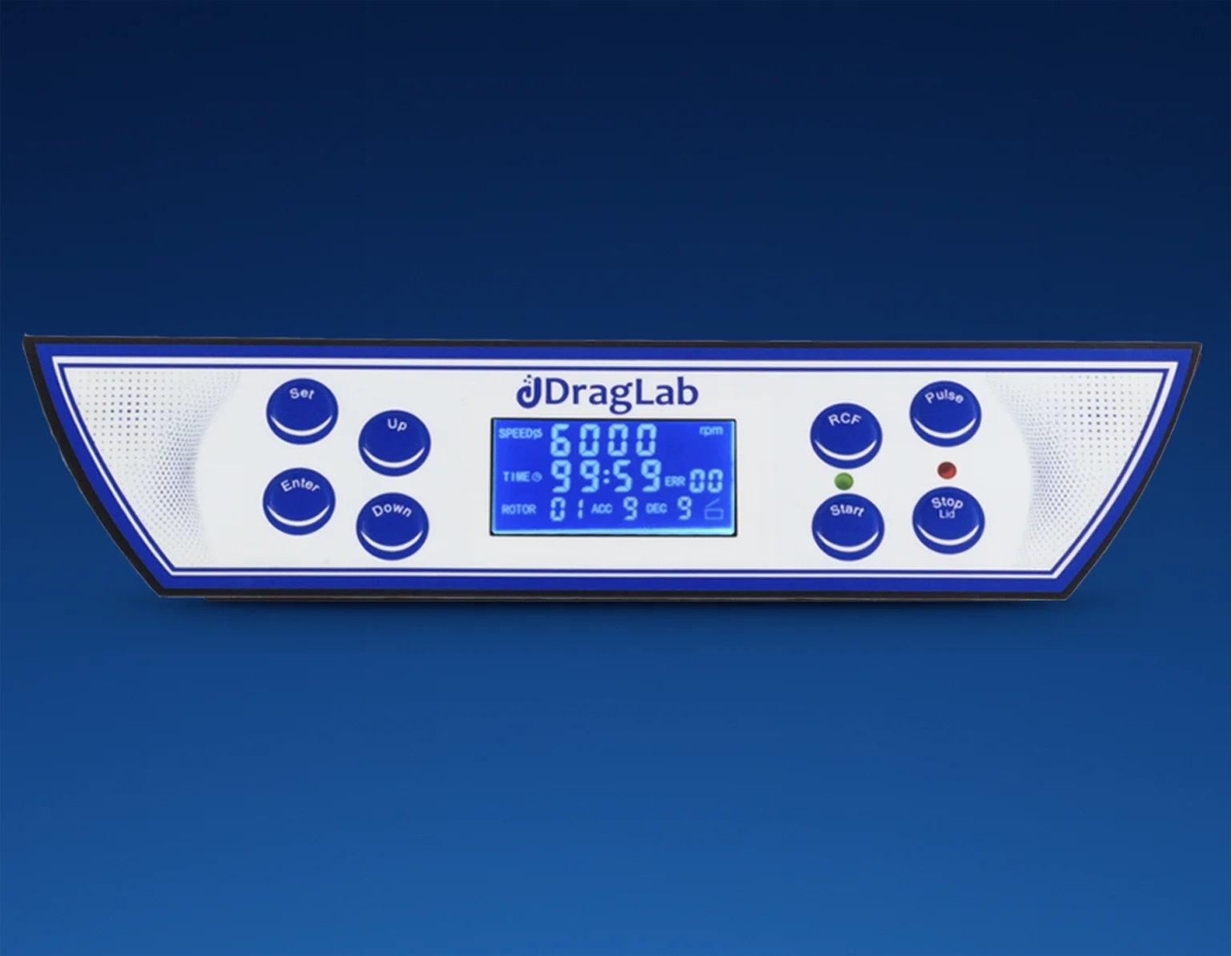

Digital Display

Adjustable Speed and Time

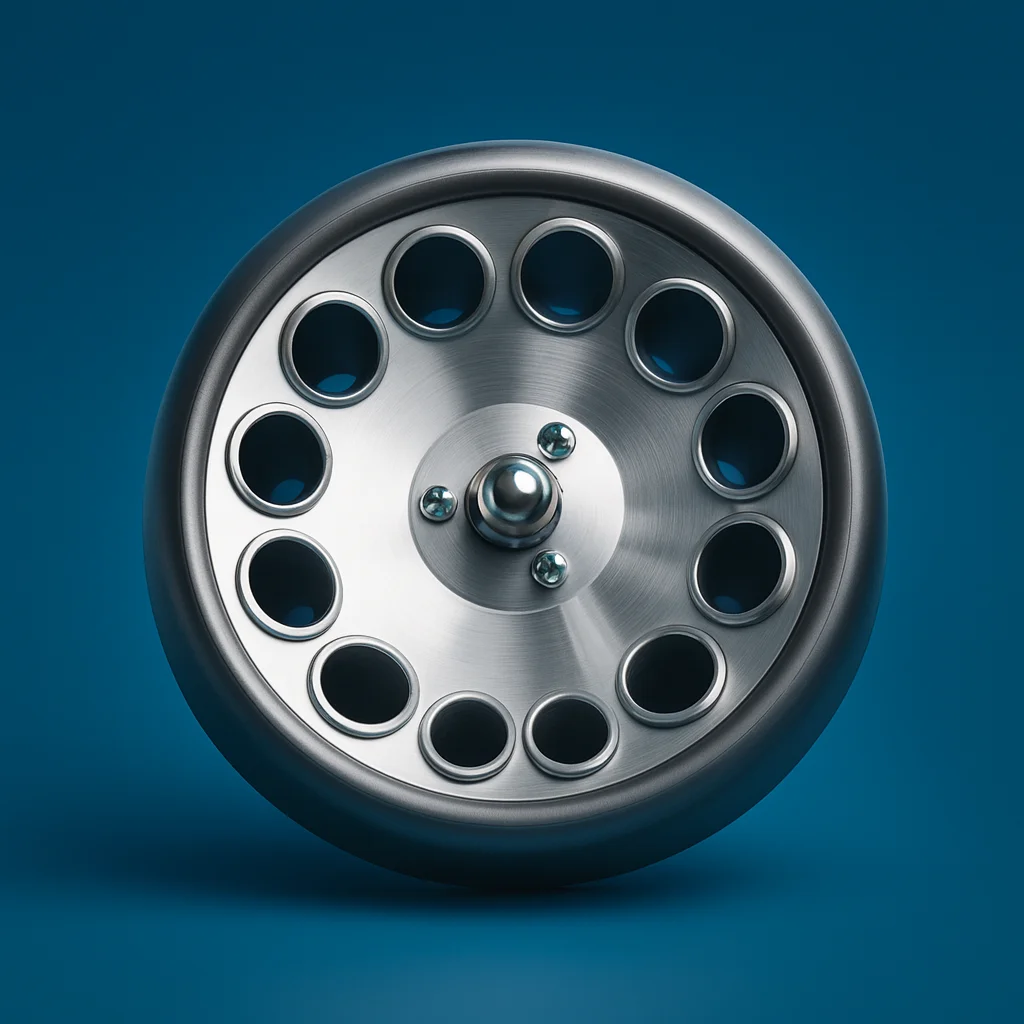

Pre-Installed Rotor

Safety Compliance

Industries

Biotechnology and Life Sciences

Environmental Laboratories

Food and Beverage Industry

Technical Specifications

Operation Mode	Digital control with programmable settings
Display	LCD / Digital screen
Max Speed	6000 RPM
Max RCF	4830 × g
Acceleration/Decel	Controllable for smooth operation
Rotor Type	Fixed-angle rotor
Rotor Capacity	12 × 15 ml
Max Rotor Load	180 g
Noise Level	≤ 60 dB

Control technology

Language setting	English
Control	Programmable digital control
Display	LCD Digital Display for speed, time, and alerts
Buttons	Start, Stop, Speed/Time Adjustment, Program, Pulse
Speed Rang	500 – 6000 RPM (RCF)
Speed Control	In RPM or RCF, 10 RPM Steps
Speed Monitoring	External Speed Readings
Continuous Mode	Available Continuous running mode
Pulse Mode	Controllable Pulse with dedicated button for working short periods
Timer	Digital backward counter to target time setting
Timer Control	1 – 99 minutes in 1 minute steps
Delayed Timer Technology	Starts when set speed achieved
Ramp Up/Down Rate	Controllable Acceleration / Deceleration. Preprogrammed for smooth transitions
Indicators	Power, Lid Lock, End-of-cycle Standard equipment

Standard equipment

Motor Type	Maintenance Free Brushless DC
Rotor	Fixed Angle rotor Vertical 35
Rotor Capacity	12 x 15 ml
Rotor Material	Polycarbonate
Outer Casing	Powder-coated steel with stoved enamel paint + ABS
Tube Socket Material	ABS (Rigid Plastic)
Lid Lock	Lid Lock Mechanism for Safety
Sealing	Integrated Rubber Gasket
Overall Dimensions	290 x 380 x 280 mm
Net Weight	16 Kg

Safety and Compliance

Lid Lock	Prevents opening while in operation / prevents operation while open
Rotor Lock	Quick-release system
Emergency Stop	Dedicated STOP button
Overheat Protection	Auto shut-off for motor safety
Compliance	CE Mark, IP20, IEC 61010-1

Working conditions

Installation	The surface on which the device will be installed must be flat and solid The four feet of the device equipped with a suction cup should sit balanced on the surface and should not move. The distance between the wall and the rear of the appliance must be at least 15 cm The sides distance must be not less than 15 cm.
Operating Temp.	10 °C – 40 °C
Humidity (operation)	30% – 75% RH (non-condensing)
Air Pressure	700 – 1060 hPa
Storage Temp.	10 °C – 40 °C (ventilated, corrosion-free)

Electrical data

Voltage	AC 190–240 V, 50/60 Hz
Power Consumption	1500 watt
Fuse	6 Amp
Electrical Safety	IEC 61010-1

Accessories

Standard Accessories

Power cord User Manual Spare Fuse (6 A) Rotor (12 × 15 ml) already installed

Shipping information

Customs tariff number	HS Code 84211920 - laboratory centrifuges
Dimensions approx. incl. carton	430 (W) X 370(D) X 300 (H) mm
Net weight	7 KG
Gross weight carton	8 KG
